Honda Acty — Lighting
Complete US/JP bulb size cross-reference for 2nd generation (1988–1999) Acty.
Front Lighting
| Location | US Size | JP Size | Voltage | Qty | OEM Part # |
|---|---|---|---|---|---|
| Headlight | H4 | H4 | 12v | 2 | 33115SB2732 |
| Turn Signal (lower/inside) | 921 | T16 | 12v | 2 | 34908-SJ6-004 |
| Turn Signal (upper/outside) | 168 / 194 | T10 | 12v | 2 | 34908-SJ6-004 |
| Side Running Lights | 168 / 194 | T10 | 12v | 2 | 34908-SJ6-004 |

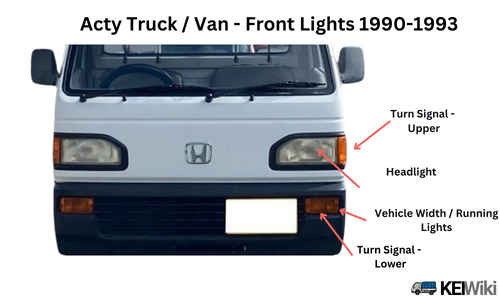

1990–1993 Headlight Design

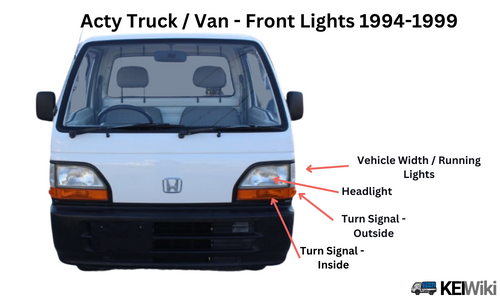

1994–1999 Headlight Design
Rear Lighting
| Location | US Size | JP Size | Voltage | Qty | OEM Part # |
|---|---|---|---|---|---|
| Brake Light | 1157 | 25 | 12v | 2 | 34906-SB6-003 |
| Turn Signal | 921 | T16 | 12v | 2 | 34908-SJ6-004 |
| Reverse Light | 921 | T16 | 12v | 2 | 33506-SJ6-004 |
| License Plate Light | 168 / 194 | T10 | 12v | 1 | 34908-SJ6-004 |
| Cargo Light | 921 | T16 | 12v | 1 | 34908-SJ6-004 |
Interior Lighting
| Location | US Size | JP Size | Voltage | Qty | OEM Part # |
|---|---|---|---|---|---|
| Dome Light | DE3022 | T8x28 | 12v | 1 | 35409-SD2-003 |
| Instrument Cluster Backlight | 2721 | T5 | 14v | 1 | 35506-SA5-003 |
| Truck Instrument Cluster | 2721 | T5 | 14v | 9 | 35505-SA5-003 |
| Van Instrument Cluster | 2721 | T5 | 14v | 11 | 35505-SA5-003 |
LED Equivalents
All bulbs in the Acty can be replaced with LED equivalents for improved brightness and longer life. LED bulbs run cooler and draw significantly less current, which reduces strain on the aging wiring harness.
| Original Bulb | LED Equivalent | Notes |
|---|---|---|
| 168 / 194 (T10) | T10 / W5W LED — any 5-SMD or 6-SMD | Side markers, license plate, small indicators |
| 921 (T16) | T15 / T16 LED — 15 or 18 SMD | Turn signals, reverse, cargo — verify polarity |
| 1157 | 1157 dual-filament LED | Rear brake/tail — ensure dual-filament compatible |
| DE3022 (dome) | DE3022 LED festoon — 31mm | Interior dome light |
| 2721 (T5) | T5 wedge LED — neo-wedge base | Instrument cluster backlighting |
Turn Signal Flasher Relay (for LED Compatibility)
If you convert the turn signals to LED bulbs, the stock thermal flasher relay will cause the signals to flash too fast (hyperflash) or not flash at all, because LEDs draw far less current than incandescent bulbs. Replace the stock relay with an electronic LED-compatible unit.
The EP34 from Standard Motor Products is a direct-fit 3-pin replacement for the stock flasher relay on most 1990–1998 Acty trucks. It is designed for conventional incandescent bulbs. For LED turn signals, look for an electronic flasher relay labeled as “LED compatible” with the same 3-pin configuration, or use load resistors in parallel with each LED turn signal to simulate the original current draw.
