Honda Acty — Fuses
Fuse box locations, part numbers, and full fuse diagrams for truck and van.
Interior Fuse Box Location
The interior fuse box is mounted to the firewall under the dash, to the left of the steering wheel. This box contains fuses for all electronics.

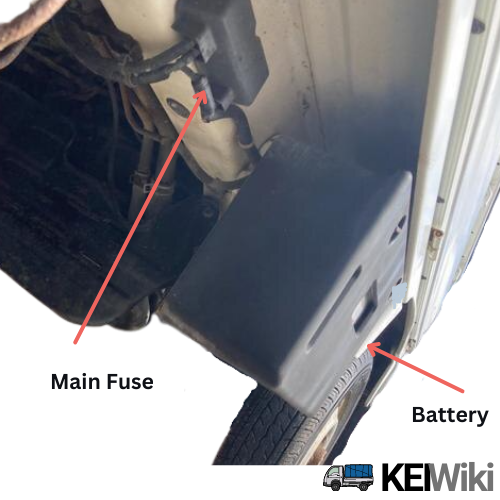

Main Fuse Location — Truck
On the outside of the frame rail between the spare tire and the coolant overflow bottle, there is a black plastic cover. Remove the cover to access the 45A main fuse.
Main Fuse Location — Van
The main fuse box on the van is mounted on the inside, under the rear passenger seat.
Fuse Part Numbers
OEM Fuse Part Numbers
| Brand | Part Number | Notes / Info |
|---|---|---|
| Honda | 98200-64500 | Main Fuse — 45A Link |
| Honda | 98200-31000 | 10A ATO / Blade Fuse |
| Honda | 98200-31500 | 15A ATO / Blade Fuse |
| Honda | 98200-32000 | 20A ATO / Blade Fuse |
Fuse Box Diagrams
Warning:Differences are possible depending on dealer options, model type, and aftermarket accessories. Verify your specific configuration before replacing fuses.

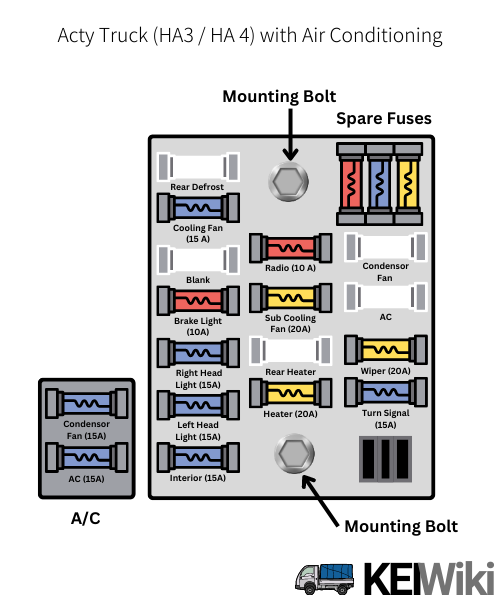

Acty Truck — With AC

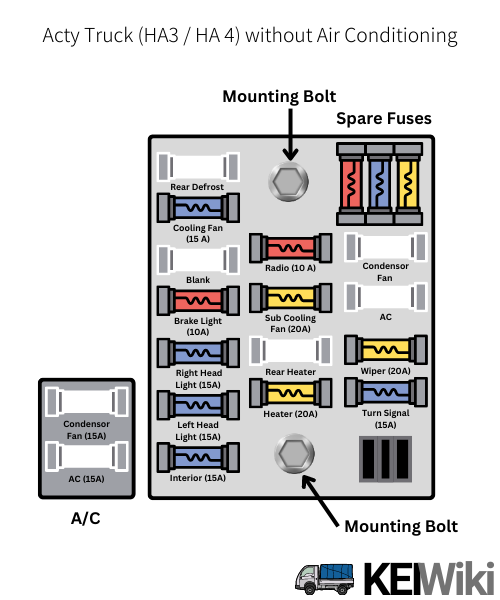

Acty Truck — Without AC

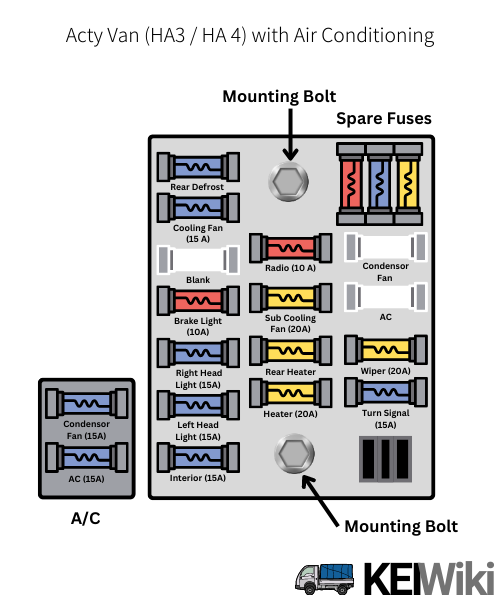

Acty Van — With AC
